Rechargeable & Portable LED light Solutions



Another branch of Amicell products – The Mobile Led Solutions.  Our focus is on unique applications, where our specialty, in custom design and in mobile energy, can come into effect.

Among our projects – Internal lights for army vehicles, Lights for explosive environment and surrounding light for rescue forces.

How do we get from your needs to full Solution:

Step 1 – You decide

  • How much light do you realy need? In LUX (See table)

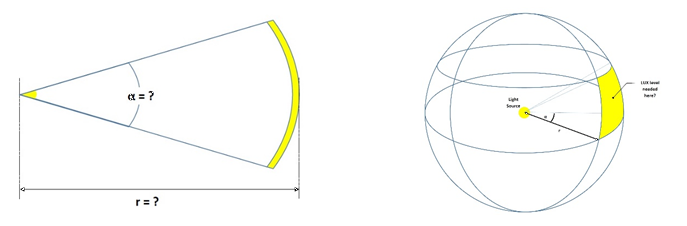

  • Surface area or beam angle? α=? (from 8° to 360°)
  • Distance between light source and the surface needs to be lighted? r=?

led-light-beem

Higher “r”, larger “α” will increase the Luminous intensity needed at the Light source.

Activity LUX, (lumen/m2)
Public areas with dark surroundings 20 – 50
Simple orientation for short visits 50 – 100
Working areas where visual tasks are only occasionally performed 100 – 150
Warehouses, Homes, Theaters, Archives 150
Easy Office Work, Classes 250
Normal Office Work, PC Work, Study Library, Show Rooms, Laboratories 500
Supermarkets, Mechanical Workshops, Office Landscapes 750
Normal Drawing Work, Detailed Mechanical Workshops, Operation Theaters 1,000
Detailed Drawing Work, Very Detailed Mechanical Works 1500 – 2000
Visual tasks of low contrast  and very small size for prolonged periods of time 2000 – 5000
Very prolonged and exacting visual tasks  5000 – 10000
Very special visual tasks of extremely low contrast and small size 10000 – 20000

Step 2 – We Calculate

  • Luminous intensity of the Light source.
  • How many LED modules needed

Step 3 – We design

  • the Light Module
  • the Power system
  • Electrical control
  • Mechanics according to the surrounding

For example – Omri light with different LUX as a function of the beam angle:

120°, 130 LUX, 8m radius

120°, 130 LUX, 8m radius

360°, 50 LUX, 8m radius

360°, 50 LUX, 8m radius
