How to Design BMS? Battery Management System Design Explained.

Understanding the basic principles and considerations involved in designing a Battery Management System (BMS) for lithium-ion batteries is crucial to ensure optimal performance, safety, and longevity. This article provides an in-depth explanation of the key components, design considerations, and best practices for creating a reliable and efficient BMS. From the importance of accurate state-of-charge (SOC) and state-of-health (SOH) estimation to choosing the right ICs and implementing advanced algorithms, this guide will equip you with the knowledge necessary to design a robust BMS for various battery applications.

Key Takeaways

• BMS design plays a crucial role in ensuring the optimal performance, safety, and longevity of lithium-ion batteries.
• Accurate state-of-charge (SOC) and state-of-health (SOH) estimation are important for effective battery management.
• The core components of BMS architecture include the Analog Front-End (AFE), Microcontroller (MCU), and Fuel Gauge.
• Selecting the right ICs is essential for achieving optimal BMS performance.
• Advanced algorithms and modeling techniques can significantly improve the accuracy of a BMS.

Designing a BMS involves navigating the complexities of both circuitry and software. It requires careful consideration of industry standards, safety regulations, and adaptability to various battery chemistries and configurations. By understanding the core principles and implementing the recommended strategies, designers can create BMS solutions that optimize battery performance, safety, and longevity.

The Critical Role of Battery Management Systems in Modern Devices

Battery Management Systems (BMS) are of utmost importance in ensuring the safe and reliable operation of modern devices powered by lithium-ion batteries. These systems play a vital role in optimizing battery performance, extending battery life, and enhancing overall device safety.

Understanding Battery Safety and Performance

Battery safety is a paramount concern, particularly when it comes to lithium-ion batteries that power various consumer electronics, electric vehicles, and energy storage systems. A well-designed BMS helps prevent overcharging, over-discharging, and overheating, thus reducing the risk of battery failure, thermal runaway, and potential safety hazards.

Furthermore, BMS ensures optimal battery performance, allowing devices to operate efficiently and consistently over time. By monitoring battery voltage, current, temperature, and other essential parameters, BMS can provide real-time information about the battery’s health and performance, enabling timely actions to maintain its efficiency.

Essentials of Accurate State-of-Charge (SOC) and State-of-Health (SOH)

Accurate estimation of State-of-Charge (SOC) and State-of-Health (SOH) is a crucial aspect of battery management. SOC refers to the remaining capacity of a battery, indicating the amount of charge it currently holds. SOH, on the other hand, reflects the battery’s overall health and indicates its capacity degradation over time.

Accurate SOC estimation enables users to gauge the available battery capacity accurately and plan their device usage accordingly. Reliable SOH estimation provides valuable insights into the battery’s degradation pattern, allowing users to take proactive measures to maintain its performance and lifespan.

By implementing advanced algorithms and using sophisticated monitoring techniques, such as coulomb counting, voltage-based estimation, and impedance analysis, BMS can accurately estimate SOC and SOH, enabling users to optimize their device usage and effectively manage battery life.

Exploring the Core Components of BMS Architecture

A comprehensive Battery Management System (BMS) design comprises various core components that work together to manage and monitor the battery. This section delves into the function of the Analog Front-End (AFE) in BMS design, the role of the Microcontroller (MCU), and the importance of the Fuel Gauge in battery management.

The Function of Analog Front-End (AFE) in BMS Design

The Analog Front-End (AFE) plays a crucial role in BMS design by providing voltage, temperature, and current readings from the battery. The AFE serves as the interface between the battery and the rest of the BMS components, allowing for accurate measurement and monitoring of the battery’s performance. It ensures that the BMS can effectively assess the state-of-charge (SOC) and state-of-health (SOH) of the battery, enabling precise control and management.

Role of the Microcontroller (MCU) and Fuel Gauge in Battery Management

The Microcontroller (MCU) forms the brain of the BMS, responsible for processing data, executing control algorithms, and managing communications between the various BMS components. It plays a crucial role in integrating the AFE readings, maintaining accurate SOC and SOH estimations, and protecting the battery from potential issues.

The Fuel Gauge, also known as the battery monitor, is another essential component of the BMS. It provides real-time monitoring and estimation of the battery’s state-of-charge, allowing for accurate predictions of available energy. The Fuel Gauge ensures that the BMS can precisely measure and manage the battery’s energy levels, preventing overcharging, undercharging, or premature depletion.

Choosing the Right ICs for Optimal BMS Design

Selecting the right Integrated Circuits (ICs) is crucial for ensuring optimal performance in Battery Management System (BMS) design. To maximize the efficiency and accuracy of the BMS, designers need to consider various factors while choosing the ICs. In this section, we will explore the benefits of dedicated Fuel Gauge ICs and discuss efficient design considerations that can enhance the overall BMS performance.

Benefits of Dedicated Fuel Gauge ICs

Fuel Gauge ICs are specifically designed to provide accurate estimation of the State of Charge (SOC) and State of Health (SOH) of the battery. These dedicated ICs offer several advantages:

• Accurate SOC and SOH estimation: Fuel Gauge ICs utilize advanced algorithms and precise measurements to determine the remaining capacity and health of the battery. This information is crucial for optimizing the battery’s performance and ensuring its longevity.
• Easy integration: Dedicated Fuel Gauge ICs are designed to seamlessly integrate into the BMS, simplifying the overall system design and reducing development time.
• Communication interface compatibility: Fuel Gauge ICs support commonly used communication protocols such as I2C, SMBus, and HDQ, enabling easy integration with the microcontroller and other system components.

By incorporating dedicated Fuel Gauge ICs into the BMS design, designers can achieve precise SOC and SOH estimation, leading to improved battery management and performance.

Efficient Design Considerations for Overall BMS Performance

In addition to selecting dedicated Fuel Gauge ICs, optimizing the overall BMS performance requires careful design considerations. The following factors play a crucial role in enhancing the efficiency and effectiveness of the BMS:

1. Power consumption: Minimizing power consumption is essential for prolonging battery life and maximizing the efficiency of the BMS. Choosing ICs with low power consumption and implementing power-saving features can significantly improve the overall performance.
2. Communication interfaces: Selecting ICs with efficient communication interfaces, such as SPI or CAN, can enhance data exchange between the BMS components and improve the system’s responsiveness and accuracy.
3. Voltage and current sensing capabilities: Ensuring that the selected ICs have suitable voltage and current sensing capabilities is crucial for accurate battery monitoring and protection. ICs with high-resolution ADCs and precise measurement capabilities can provide reliable data for the BMS.

By incorporating these efficient design considerations, designers can optimize the performance of the BMS, ensuring improved battery management system efficiency and overall system reliability.

Enhancing Accuracy in BMS with Advanced Algorithms and Modeling

Accurate measurement and estimation of battery parameters are crucial in designing an effective Battery Management System (BMS). Advanced algorithms and modeling techniques play a vital role in enhancing the accuracy of BMS readings and estimations. This section explores two key aspects: the importance of voltage-current synchronous reading in improving BMS precision, and the role of fuel gauge algorithms and cell models in accurately estimating State of Charge (SOC) and State of Health (SOH).

How Voltage-Current Synchronous Reading Improves BMS Precision

Voltage-current synchronous reading is a technique that uses advanced algorithms to measure both voltage and current simultaneously in a battery. This approach provides real-time estimation of the battery’s equivalent series resistance (ESR), which is a critical parameter for accurate SOC and SOH estimation. By synchronizing voltage and current measurements, BMS designers can eliminate inaccuracies caused by time delays and variations in battery performance.

The voltage-current synchronous reading technique enables precise calculation of the battery’s internal resistance, which affects its overall performance and efficiency. A more accurate estimation of ESR facilitates a more reliable and responsive BMS, enabling better battery management and prolonging its lifespan.

Fuel Gauge Algorithms and Cell Models

Fuel gauge algorithms and cell models are essential components of a BMS that enable accurate estimation of SOC and SOH. Fuel gauge algorithms utilize a combination of voltage, current, and temperature data to determine the battery’s SOC, providing real-time information about its remaining capacity. These algorithms are designed based on sophisticated models that consider various battery characteristics, such as capacity fade, self-discharge, and aging effects.

Cell models, on the other hand, are mathematical representations of the battery’s electrical behavior that help predict its performance under different operating conditions. By integrating cell models into the BMS, designers can simulate and analyze various scenarios, improving the accuracy of SOC and SOH estimation. These models take into account factors such as temperature, load profile, and internal resistance, enabling the BMS to make reliable predictions and optimize battery management strategies.

Ensuring Robust Protection with AFE Direct Fault Control

Robust protection is a critical aspect of BMS design to ensure the safety of the battery and the surrounding system. To implement effective battery protection mechanisms, designers utilize Analog Front-End (AFE) direct fault control. AFE direct fault control provides comprehensive monitoring and control capabilities, allowing for quick detection and response to potential faults or abnormalities in the battery system.

High-Side vs. Low-Side Battery Protections Explained

When it comes to battery protection, designers have two main options: high-side and low-side battery protections. High-side protection places the protection circuitry between the battery pack and the load, enabling direct control over the battery voltage. On the other hand, low-side protection connects the protection circuitry between the battery pack and ground, which allows for easier implementation but may result in higher power dissipation.

Choosing between high-side and low-side battery protections depends on the specific application requirements and design constraints. High-side protection offers better fault isolation and protection for sensitive circuits, while low-side protection is more straightforward to implement and may be more cost-effective.

Integration and Testing of Safety Features in BMS

Integrating and thoroughly testing safety features is crucial to ensure the reliable and fail-safe operation of the BMS. Safety features such as overvoltage protection, undervoltage protection, overcurrent protection, and temperature monitoring are essential for safeguarding the battery and the system it powers.

During the integration phase, designers must carefully integrate safety features into the BMS circuitry and software, ensuring proper functionality and compatibility with other BMS components. Rigorous testing is then conducted to verify the effectiveness of these safety features and to identify any potential faults or vulnerabilities.

By prioritizing the integration and testing of safety features, designers can enhance the overall safety and reliability of the BMS, providing peace of mind for users and preventing catastrophic failures or accidents.

Implementing Effective Cell-Balancing to Extend Battery Life

Cell-balancing techniques play a crucial role in maximizing the performance and extending the lifespan of multi-cell battery packs. By ensuring uniform cell voltages and preventing capacity degradation, cell-balancing configuration can significantly improve battery life extension. This section explores passive and active cell-balancing techniques, highlighting their advantages, drawbacks, and implementation considerations.

Passive vs. Active Cell-Balancing Techniques

Passive cell-balancing techniques involve redistributing excess charge from higher voltage cells to lower voltage cells using resistive or dissipative elements. This approach is simple, cost-effective, and suitable for applications with low cell voltage differences. However, it can result in energy wastage and is less efficient in balancing cells with significant voltage discrepancies.

Active cell-balancing techniques, on the other hand, use active components such as switches or integrated circuits to transfer charge between cells. This method allows for more precise voltage control and efficient balancing of cells with larger voltage disparities. Active cell-balancing techniques generally require more complex circuitry and involve additional power consumption, but they offer superior balancing performance, particularly for applications that require high cell voltage accuracy.

Optimizing Cell-Balancing Configuration

To optimize the cell-balancing configuration, designers must consider factors such as the number of cells in the battery pack, the desired balancing precision, and the available power budget. The configuration can vary depending on the specific application requirements and the battery chemistry being used.

Some common cell-balancing configurations include:

• Individual Cell Balancing: Each cell is individually balanced using dedicated balancing circuits or modules.
• Module-Level Balancing: Cells are grouped into modules, and balancing occurs at the module level, minimizing the complexity of the balancing circuitry.
• System-Level Balancing: All cells in the battery pack are balanced collectively using a single balancing circuit, simplifying the overall design but potentially leading to imbalances between cells.

The optimal cell-balancing configuration depends on the specific application’s requirements, cost considerations, and desired balancing accuracy. It is essential to evaluate the trade-offs between complexity, cost, and performance when selecting the appropriate cell-balancing method.

BMS design: Navigating the Circuitry and Software of Battery Management

Designing a Battery Management System (BMS) requires a comprehensive understanding of both circuitry and software. This section provides an overview of the BMS design process, covering the key considerations in circuit design and software development. By effectively navigating the intricacies of both aspects, designers can create a functional and optimized battery management system that meets the specific requirements of their application.

Circuit Design

In BMS circuit design, several factors must be taken into account to ensure the reliable and efficient operation of the system:

• Proper selection and integration of BMS components, such as Analog Front-End (AFE), microcontroller (MCU), and fuel gauge.
• Accurate monitoring of battery parameters, including voltage, temperature, and current measurements.
• Implementation of appropriate safety features, such as high-side or low-side battery protection.
• Optimization of power consumption to maximize battery life and system efficiency.

These considerations lay the foundation for a well-designed BMS circuit, ensuring accurate battery management and protection.

Software Development

Developing BMS software involves implementing algorithms and control strategies to accurately estimate the state-of-charge (SOC) and state-of-health (SOH) of the battery. Key aspects of BMS software development include:

• Selection of suitable algorithms for SOC and SOH estimation based on battery chemistry and operating conditions.
• Integration of real-time clock for accurate timekeeping and synchronization of BMS operations.
• Efficient communication protocols to exchange data between BMS components and external devices.
• Testing and validation of the software to ensure its reliability and performance under various scenarios.

Through effective software development, the BMS can provide precise and timely information about the battery’s condition, enabling optimal control and management.

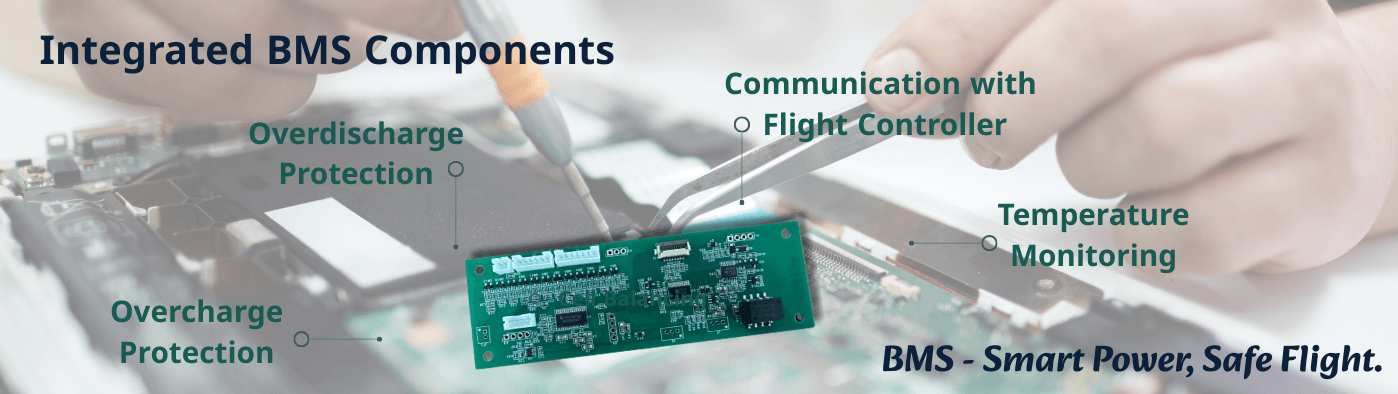

The image above illustrates the intricate circuitry of a Battery Management System (BMS), showcasing the complexity involved in designing a robust and efficient system. It represents the interconnections and components that enable accurate monitoring, protection, and control of the battery.

In the next section, we explore the importance of real-time battery monitoring and the role of cutoff FETs and cell voltage monitoring in ensuring battery longevity and safety.

Real-Time Battery Monitoring: A Key to Sustainable BMS

Real-time battery monitoring is vital for maintaining the performance and longevity of lithium-ion batteries. A Battery Management System (BMS) equipped with real-time monitoring capabilities allows for accurate assessment and control of the battery’s condition, ensuring optimal performance and preventing potential safety hazards.

Importance of Cutoff FETs and Real-Time Clock in BMS

In a BMS, cutoff FETs play a crucial role in protecting the battery by disconnecting it from the rest of the system when necessary. These FETs enable the BMS to shut off power to the battery during critical events, such as overcharging, overdischarging, or short circuits. By controlling the flow of current, cutoff FETs safeguard the battery from potentially damaging conditions.

A real-time clock (RTC) is another essential component in a BMS that helps with accurate monitoring and event timestamping. The RTC ensures precise timing and synchronization, allowing the BMS to record and analyze battery performance data in real-time. This enables engineers to identify trends, evaluate battery behavior, and make informed decisions regarding maintenance and optimization strategies.

Monitoring Cell Voltage and Temperature for Longevity

Monitoring cell voltage and temperature is crucial for maximizing battery longevity and preventing adverse operating conditions. By continuously monitoring cell voltage, the BMS can detect imbalances between individual cells in a battery pack. This information helps implement cell-balancing techniques, ensuring that each cell operates within the desired voltage range and preventing capacity degradation.

Similarly, temperature monitoring allows the BMS to detect abnormal temperature fluctuations, which can indicate potential safety risks. By continuously monitoring and controlling the temperature, the BMS ensures that the battery operates within the specified temperature limits, preventing overheating or damage that can negatively impact battery performance and lifespan.

Battery Longevity through Real-Time Monitoring

By integrating real-time battery monitoring, cutoff FETs, and a real-time clock into the BMS design, engineers can enhance battery performance, extend longevity, and ensure safe operation. Accurate monitoring of cell voltage and temperature, combined with precise timing and event recording, enables timely preventive actions, such as balancing cells, regulating charging and discharging, and detecting abnormalities, all leading to improved battery longevity and optimized system performance.

Accurate Estimation of Energy: State of Charge and Health

Accurate estimation of energy parameters such as state of charge (SOC) and state of health (SOH) is crucial for effectively utilizing and maintaining battery performance. In battery management system (BMS) design, it is essential to have reliable energy estimation to optimize battery utilization and ensure the longevity of the battery.

The accuracy of SOC and SOH estimation relies on various factors, including the precision of measurement sensors, the robustness of the estimation algorithms, and the ability to account for dynamic operating conditions. Improving SOC estimation accuracy enhances the system’s ability to predict available energy, while accurate SOH estimation helps monitor battery health and anticipate degradation.

To enhance energy estimation precision in BMS design, several strategies can be employed. These include:

1. Using high-quality measurement sensors with low error rates and suitable resolution.
2. Implementing advanced estimation algorithms that account for nonlinear battery behavior and temperature effects.
3. Performing regular calibration and system validation to ensure accuracy and reliability.
4. Integrating machine learning techniques to adapt to unique battery characteristics and operating conditions.

By incorporating these strategies into BMS design, the accuracy of energy estimation, including SOC and SOH, can be significantly improved. This enables better management of battery performance, extended battery life, and enhanced overall system efficiency.

Battery Management System Solutions for Stationary Storage Applications

Battery management systems (BMS) are essential for efficient and safe energy storage in stationary storage applications. Different BMS approaches, such as passive, active, and complete current control systems, offer unique advantages and considerations. Additionally, state estimation techniques and the flow of information within a BMS play a crucial role in optimizing energy management.

Different BMS Approaches: Passive, Active, and Complete Current Control

When it comes to stationary storage applications, BMS solutions can be categorized into three main approaches: passive, active, and complete current control. Each approach offers distinct features and benefits.

1. Passive BMS: Passive BMS systems are simple and cost-effective. They rely on passive balancing techniques that redistribute energy within the battery pack without the need for active components. While passive BMS solutions are suitable for certain applications, they may lack precise balancing capabilities and may not be able to handle high currents efficiently.
2. Active BMS: Active BMS systems utilize active balancing strategies that actively transfer energy between battery cells, ensuring optimal cell voltage balance. These systems typically employ switching devices, such as MOSFETs, to control the energy flow. Active BMS solutions can provide better balancing accuracy, especially for high-power applications, but they may require additional complexity and cost.
3. Complete Current Control BMS: Complete current control BMS solutions go beyond balancing and actively regulate the current across the battery pack. By incorporating advanced current control algorithms and power electronics, these systems can precisely manage charging, discharging, and balancing processes, ensuring efficient energy utilization and extending battery life.

The choice of BMS approach depends on specific application requirements, such as the desired level of balancing accuracy, power capacity, and cost considerations.

State Estimation and Information Flow in BMS

Accurate state estimation is critical for effective battery management in stationary storage applications. State estimation involves determining the state of charge (SOC) and state of health (SOH) of the battery, which are essential for optimizing performance and ensuring battery longevity.

State estimation in a BMS involves various techniques such as Kalman filtering, Coulomb counting, and model-based approaches. These techniques rely on input data such as voltage, current, temperature, and battery characteristics to estimate the battery’s SOC and SOH accurately. These estimates enable informed decision-making regarding energy storage and usage.

In addition to state estimation, the flow of information within a BMS is crucial for effective battery management. BMS solutions should establish a reliable and efficient information flow between the battery, sensing devices, control algorithms, and external systems. This allows for real-time data acquisition, processing, and monitoring, enabling optimal energy management and system performance.

Overall, choosing the appropriate BMS approach and implementing accurate state estimation techniques, along with an efficient information flow, is key to ensuring the reliable and optimal operation of battery systems in stationary storage applications.

Considerations for Custom BMS Development to Meet Industry Standards

Safety Regulations and Compliance in Battery Management

When developing a custom Battery Management System (BMS), it is crucial to adhere to industry standards and comply with safety regulations. Safety regulations ensure the protection of both the battery and the surrounding system, minimizing the risk of hazardous incidents. Compliance with these regulations not only ensures the safety of the product but also enhances consumer trust and market acceptance.

In the BMS development process, designers should thoroughly analyze and understand the specific safety regulations that apply to the intended application and target market. These regulations may encompass aspects such as voltage limits, current ratings, temperature thresholds, and protection mechanisms.

It is essential to integrate safety features into the BMS design to facilitate compliance with these regulations. This could include features such as cell voltage monitoring, temperature monitoring, and fault management systems. By implementing these safety measures, the BMS can effectively monitor and protect the battery from potentially dangerous operating conditions.

Furthermore, designers should document the safety features and compliance measures incorporated into the BMS design. This documentation serves as evidence of compliance during relevant certification processes and regulatory approvals.

Adapting BMS Design for Various Battery Chemistries and Configurations

BMS design must also consider the adaptability to different battery chemistries and configurations. Different battery chemistries, such as lithium-ion, lithium-polymer, or lead-acid, have unique characteristics and require specific management strategies.

Designing a BMS that is adaptable to various battery configurations is equally important. Battery configurations, including series, parallel, or hybrid configurations, have different voltage and current requirements. The BMS design should be flexible enough to accommodate these variations and accurately monitor and manage the battery pack.

One approach to achieving adaptability is by employing a modular BMS design. This involves developing interchangeable BMS modules that can be customized for different battery chemistries and configurations. Modular designs enable flexibility and simplify the integration process, allowing BMS solutions to be tailored to specific battery applications.

Additionally, comprehensive battery chemistry knowledge is essential for adapting the BMS design. Different chemistries have unique charging characteristics, discharge profiles, and safety considerations. By understanding these factors, designers can implement the appropriate algorithms, cell balancing techniques, and safety features specific to the battery chemistry.

Conclusion

The design of a Battery Management System (BMS) is a critical aspect of optimizing battery performance, ensuring safety, and prolonging battery life. Throughout this article, we have explored the essential considerations and best practices for creating a reliable and efficient BMS. By understanding the core principles and incorporating the recommended strategies, designers can develop BMS solutions that meet industry standards and deliver superior performance.

Key BMS design essentials include accurate estimation of state of charge (SOC) and state of health (SOH) to effectively utilize battery energy, selecting the appropriate Integrated Circuits (ICs) to optimize BMS performance, implementing advanced algorithms to enhance accuracy, utilizing AFE direct fault control for robust protection, and applying effective cell-balancing techniques to extend battery life.

Looking ahead, the future of BMS design holds exciting possibilities. As battery technology continues to advance, BMS solutions will evolve to meet the changing demands of various applications. With the increasing focus on sustainability and renewable energy sources, BMS design will play a crucial role in maximizing energy efficiency and ensuring the long-term viability of battery-powered systems.

In conclusion, designing a reliable and efficient BMS involves a comprehensive understanding of the key principles, considerations, and best practices discussed in this article. By incorporating these insights into the design process, engineers can create BMS solutions that optimize battery performance, enhance safety, and contribute to the advancement of battery technology in diverse industries.
